- 500mm L x 350mm W x 213mm H
- Extraction capacity: 550m³/hr
- Modern slimline design
- High performance 55W AC motor exhaust fan
- 4 x 5W LED GU10 4000K Neutral White with 400lm each (total 1600lm)
- 1 x 1000W R7 heat lamp for instant heating
- Side ducted - 3.0m duct included
- Wall controller with 3 switches included
- Minimum cavity height 250mm
- 3 Year In-Home Warranty
Specifications
- Voltage: 220-240V
- Illuminant Type: 4 x 5W GU10-LED
- Heat Type: 1000W R7
- Exhaust Type: 55W AC
- Material: Plastic
- Lumens: 4 x 400
- Colour Temperature: 4000K Neutral White
- Air Movement: 550m³/h
- Dimmable: Yes
- Wall Control: Included
- Length: 500mm
- Width: 350mm
- Height: 213mm
- Min Cavity Height: 250mm
- Cutout: 470mm x 315mm
- Weight: 6kg
How to select bathroom exhaust fans
When it comes to selecting between bathroom exhaust options, it is best to choose a model that suits the heating and extraction requirements of the size of your bathroom. Motor size and ducting outlet size will equate to how many cubic meters of air is circulated out of your bathroom.
It is recommended to have 15 air changes per hour for bathrooms and 10 air changes per hour for WCs, the following table can act as a guide in deciding which bathroom 3-in-1 will work best for your project.
Model | Airflow | Toilet Size (m³) | Room Size (m³) | Bathroom Size (L x W x H) |
| Vesuvius 2 Heat | 260m³/hr | 26m³ | 17.33m³ | 2.72 x 2.75 x 2.4 |
| Vesuvius 4 Heat | 260m³/hr | 26m³ | 17.33m³ | 2.72 x 2.75 x 2.4 |
| Heatflow 2 Heat | 460m³/hr | 46m³ | 30.66m³ | 3.6 x 3.6 x 2.4 |
| Heatflow 4 Heat | 460m³/hr | 46m³ | 30.66m³ | 3.6 x 3.6 x 2.4 |
| Inferno | 550m³/hr | 55m³ | 38.40m³ | 4.0 x 4.0 x 2.4 |
What's in the box?

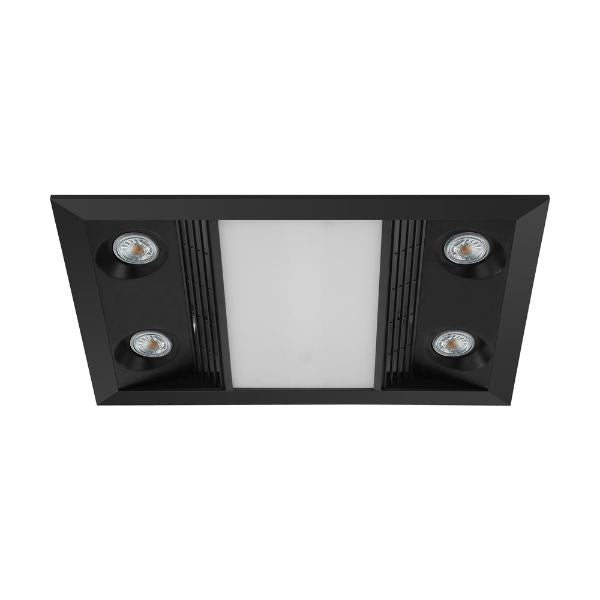

- 1 x Bathroom Heater Exhaust Fan Light
- 1 x 3.0 m 120mm diameter duct
- 1 x 3 gang wall switch
